The complete extrusion line uses touch-screen and PLC control, with linked equipment providing a high degree of automation.

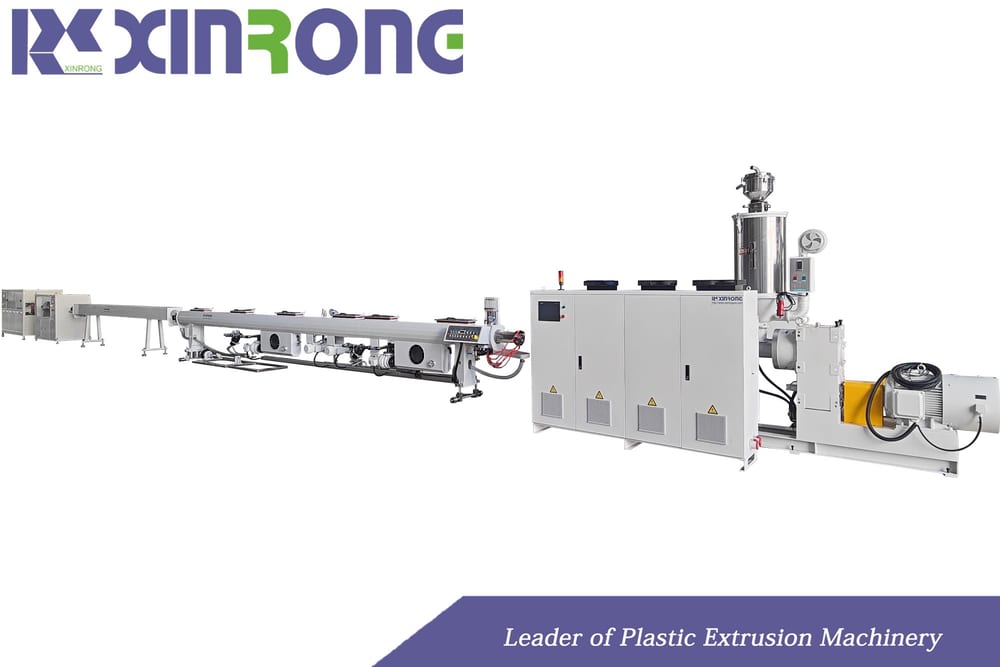

PPR Pipe Extrusion Line
Our PPR pipe extrusion machine produces PPR pipes from Ø16 to Ø160 mm, with larger sizes available on request.
PPR pipe is mainly used for cold- and hot-water supply systems.

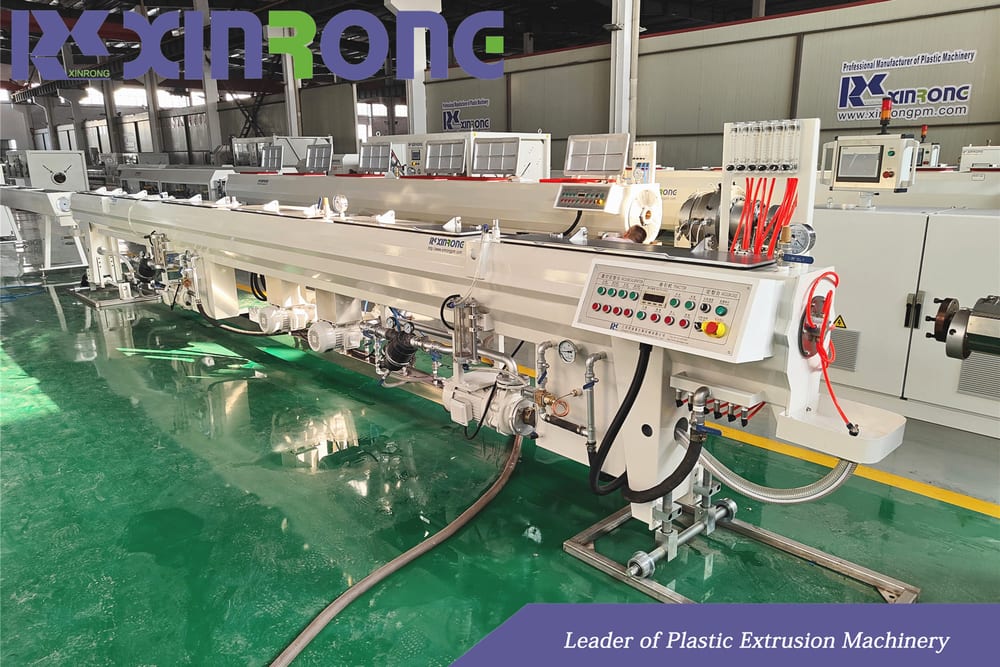

With an additional extruder and a modified die-head structure, the machine can also produce PPR fiberglass composite pipe. Available configurations include normal- or high-speed lines, single- or multi-layer lines, and single- or double-strand lines.
Machine Video
Machine Main Feature

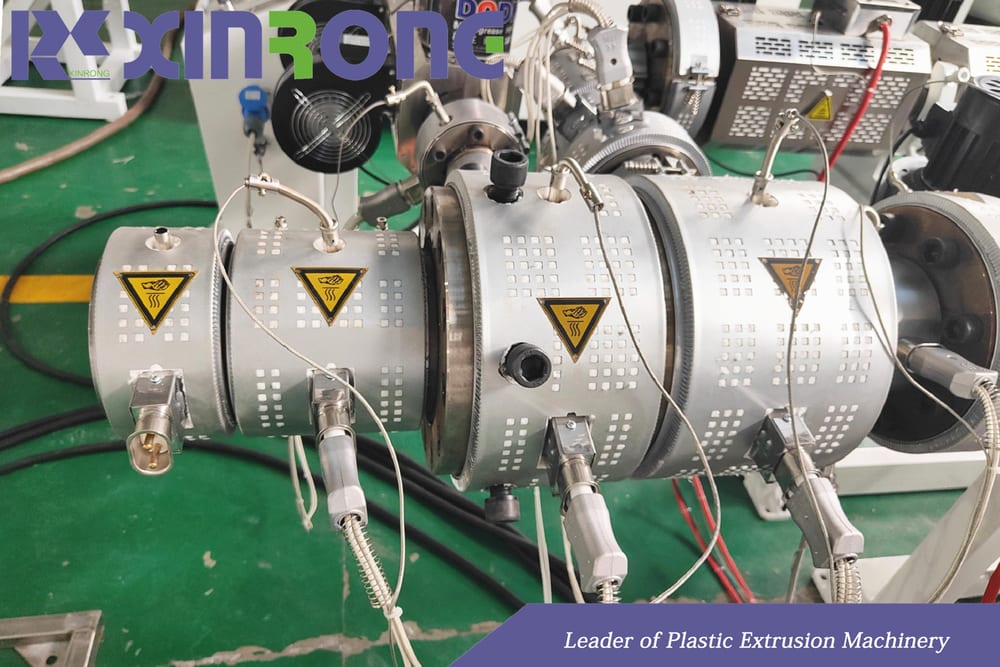

A 38:1 or 40:1 L/D-ratio screw enables high-output extrusion at low melt temperature and with low power consumption.

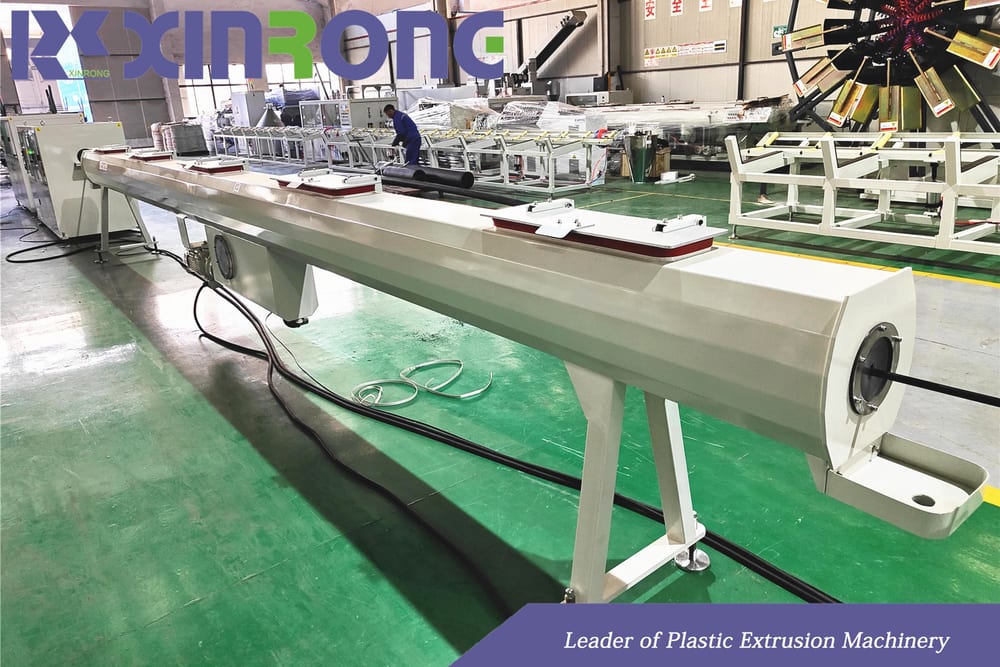

The vacuum tank can be fitted with automatic vacuum-degree control for automatic water-level and vacuum control, helping reduce long-term power consumption.
An optional gravimetric dosing system simplifies operation, accurately controls wall thickness and meter weight, and displays power consumption per unit pipe weight.
Technical Specifications
| Model | Pipe Range (mm) | Output Capacity | Main Motor Power |
|---|---|---|---|
| PPR63 | Ø16–63 | 150–260 kg/h | 45–75 kW |
| PPR63S* | (Ø16–63) × 2 | 260–450 kg/h | 75–132 kW |
| PPR110 | Ø20–110 | 190–320 kg/h | 55–90 kW |
| PPR160 | Ø50–160 | 260–400 kg/h | 75–110 kW |
