The complete line is controlled by PLC for easy, stable operation.
PEX-AL-PEX Pipe Machine

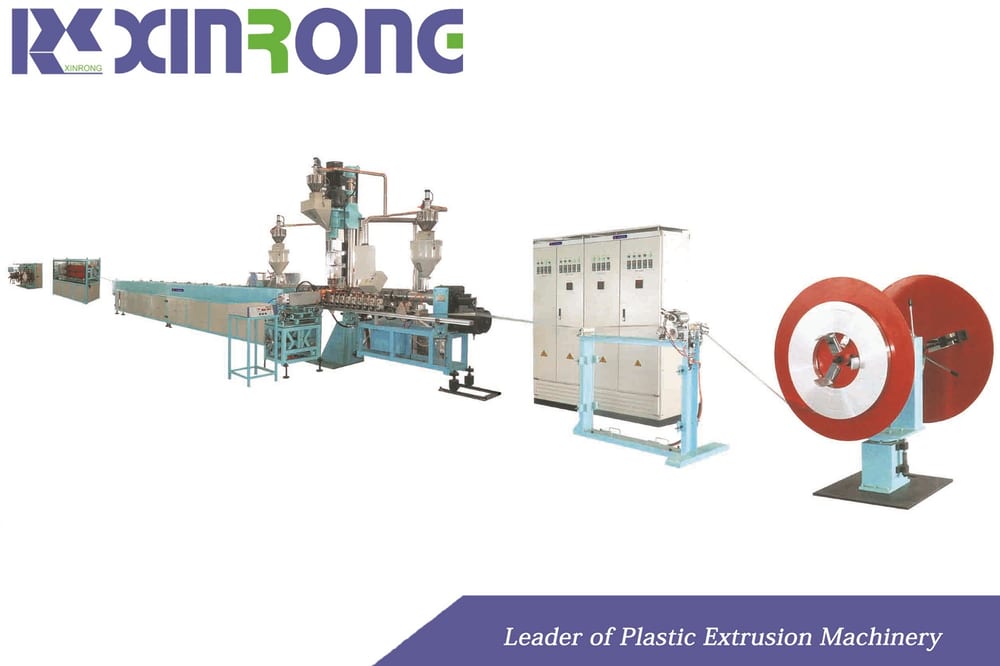

Our PEX-AL-PEX composite pipe extrusion line produces five-layer pipes from Ø16 to Ø63 mm.
PEX-AL-PEX pipe has a five-layer structure: plastic, adhesive, aluminum, adhesive and plastic. The aluminum layer is formed by ultrasonic overlap welding.
The machine forms all five layers in one step, saving floor space and improving production stability. Yield can reach 98%, and the integrated process supports higher line speeds.

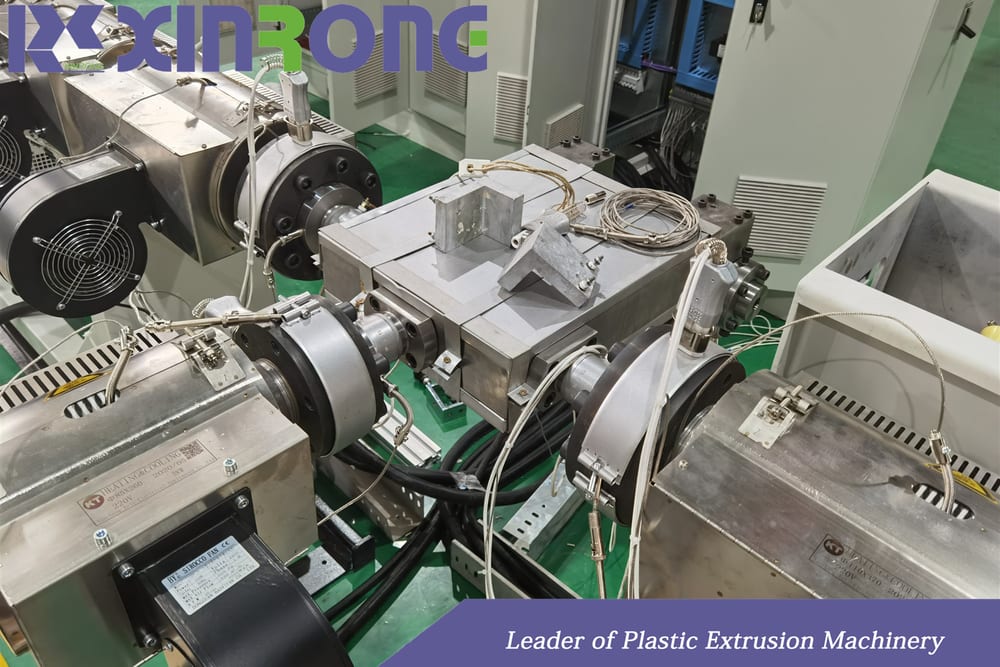

Because all materials are extruded and integrated at one time without reheating, one-step production provides reliable adhesion between layers and consistent pipe quality.
Machine Video
Machine Main Feature
One-step five-layer forming supports higher production speed, high yield and consistent pipe quality.
The imported US ultrasonic welding system provides fast, reliable aluminum overlap welding.
Imported key components are combined with locally manufactured main equipment to balance reliability and machine cost.
Technical Specifications
| Model | Pipe Range (mm) | Line Speed | Total Power |
|---|---|---|---|
| XRL32 | Ø16–32 | 7–15 m/min | 90 kW |
| XRL63 | Ø16–63 | 2–15 m/min | 120 kW |
