The complete production line is centrally controlled through a touch screen and PLC system.

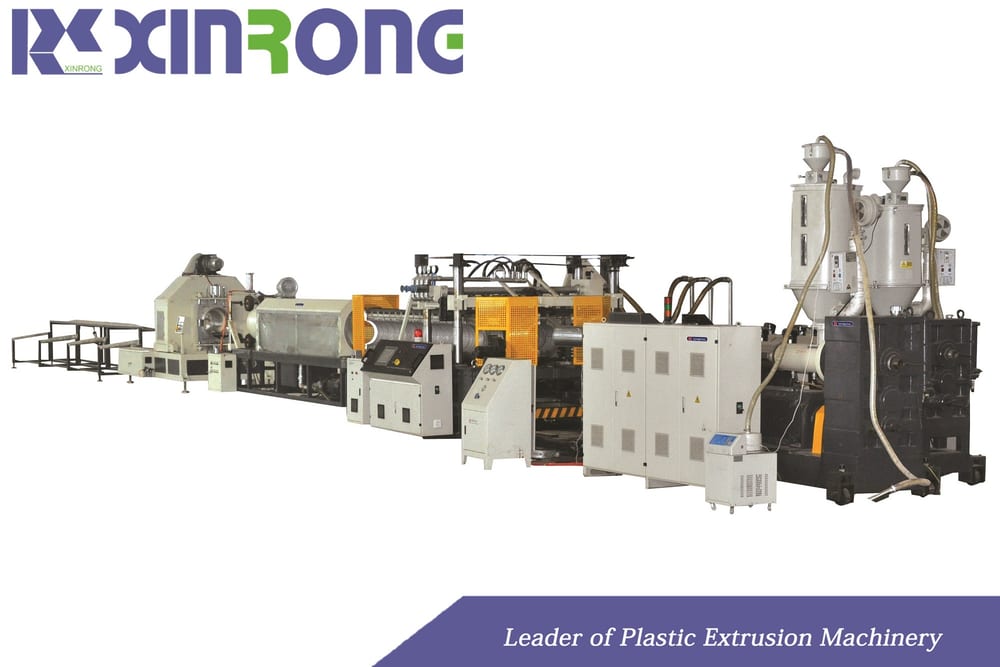

Double Wall Corrugated Pipe Extrusion Line
Our double wall corrugated pipe extrusion machine produces pipes from Ø63 to Ø1200 mm.
Double wall corrugated pipe is mainly used for water drainage and ventilation. PE is the standard material, while a different extruder configuration enables production of PVC double wall corrugated pipe.

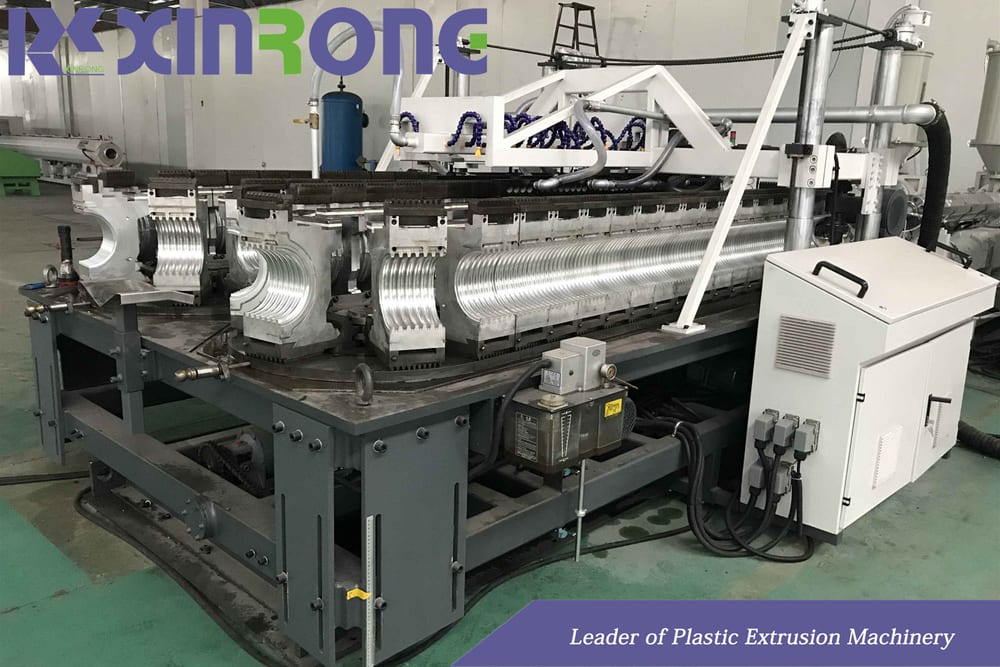

Horizontal and vertical corrugator configurations are available to suit different pipe sizes and production requirements.
Machine Video
Machine Main Feature
Horizontal corrugators and closed-loop pressure-water cooling configurations are available.
An optimized machine structure supports production of larger pipe diameters.
An efficient vacuum system delivers stable forming with low power consumption.

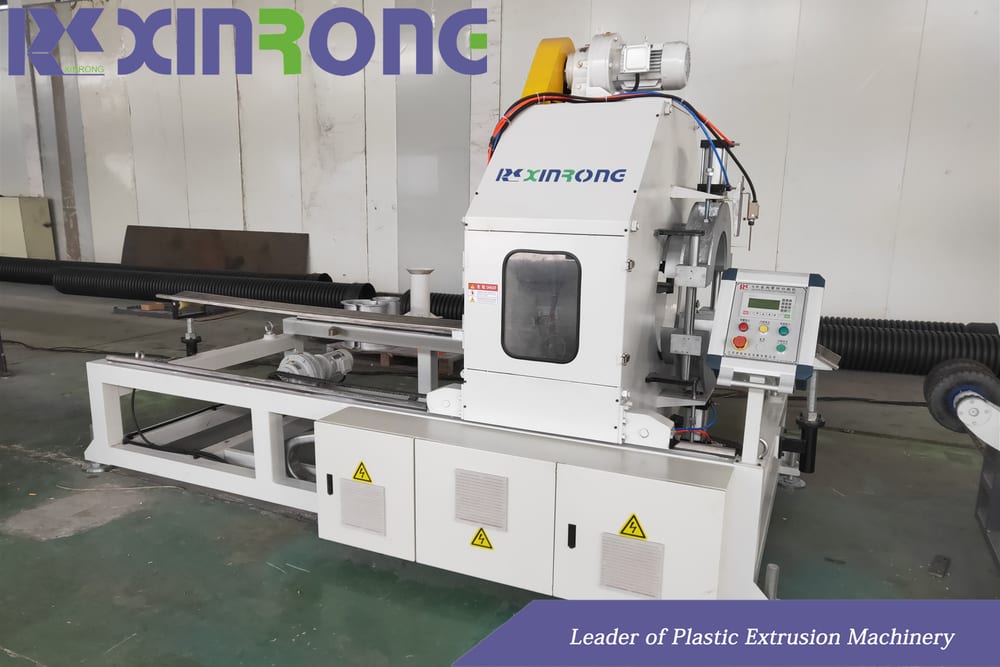

An automatic online belling system is available for integrated socket production.

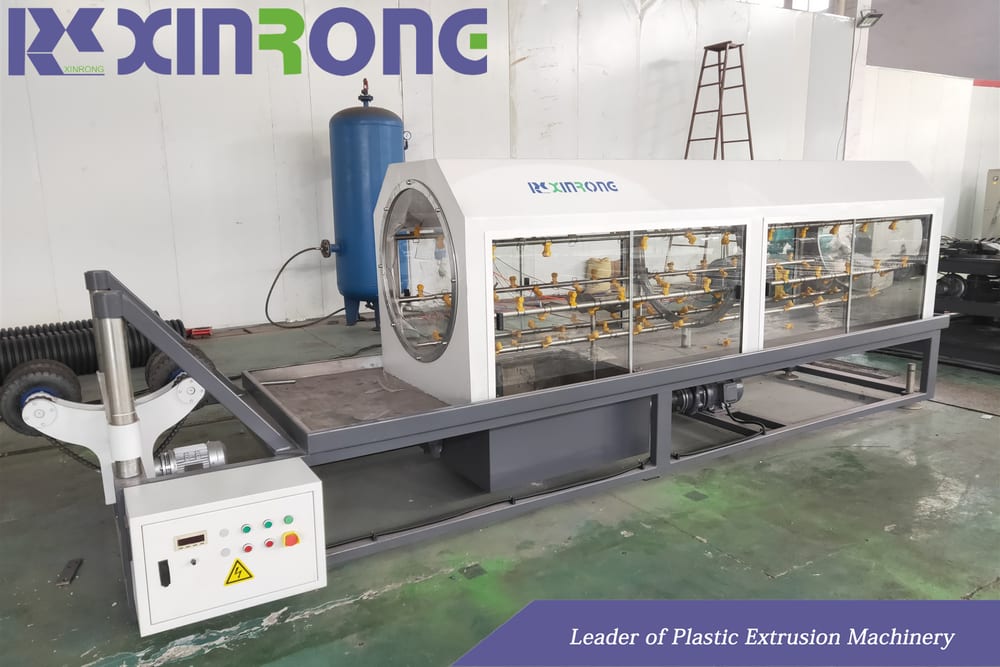

Automatic, accurate pipe cutting supports consistent finished lengths.
An integrated pipe weighing system supports production monitoring and quality control.
Technical Specifications
| Model | Pipe Range (mm) | Output Capacity | Main Motor Power |
|---|---|---|---|
| WPE160 · Horizontal | Ø63–160 | 400 kg/h | 55 + 45 kW |
| WPE250 · Horizontal | Ø75–250 | 400–520 kg/h | (55 + 45)–(75 + 55) kW |
| WPE400 · Horizontal | Ø200–400 | 740–1,080 kg/h | (110 + 75)–(160 + 110) kW |
| WPE600 · Vertical | Ø200–600 | 1,080–1,440 kg/h | (160 + 110)–(200 + 160) kW |
| WPE800 · Vertical | Ø200–800 | 1,520–1,850 kg/h | (220 + 160)–(280 + 200) kW |
| WPE1200 · Vertical | Ø400–1,200 | 1,850–2,300 kg/h | (280 + 200)–(355 + 280) kW |
